Grass 830 vs. Grass 850 Hinges: Key Differences, Compatibility & How to Choose the Right Replacement

Upgrading or repairing kitchen cabinets often comes down to a small piece of engineering that does heavy lifting every single day: the cabinet hinge. For decades, Grass hinges have served as the gold standard in European-style cabinet hardware, trusted by woodworkers, contractors, and homeowners across the United States. However, when a hinge wears out, sags, or snaps after years of daily use, finding the exact swap can feel daunting.

Among the most common vintage models found in North American homes are the Grass 830 and Grass 850 series. While these two concealed cabinet hinges look almost identical at first glance, subtle differences in their arm geometry, mounting plates, and opening angles mean they are not always directly interchangeable.

Whether you are restoring vintage kitchen cabinetry or searching for reliable replacement hinges for kitchen cabinets, this guide breaks down everything you need to know about the Grass 830 vs. Grass 850 hinges, how to verify compatibility, and where to order authentic parts.

Understanding Grass Cabinet Hinges: History & Engineering Excellence

German-engineered and widely adopted in American cabinet manufacturing during the 1980s, 1990s, and 2000s, Grass cabinet hinges revolutionized modern kitchen design. Unlike traditional surface-mounted barrel hinges, concealed European hinges sit inside a mortised cup drilled into the back of the cabinet door. This hidden design creates clean, unbroken exterior lines while offering full three-dimensional adjustability (up/down, left/right, and in/out).

Over time, constant door swinging, heavy usage, or accidental overloading can cause the internal spring mechanism or mounting plate clip to fail. When sourcing replacements, matching the exact stamped model number on your existing grass cabinet hinge is essential to prevent binding or cabinet door misalignment.

If you are unsure which hardware series your home utilizes, exploring specialized supplier catalogs like Hingemeister can help you identify legacy models and compatible retrofit hardware quickly.

Deep Dive: The Grass 830 Hinge

The Grass 830 hinge is a classic workhorse engineered primarily for standard face-frame and frameless residential cabinetry. Recognized for its smooth pivot action and rugged steel construction, the 830 model was widely installed by custom cabinet builders throughout North America.

Key Specifications & Features of the Grass 830

• Opening Angle: Typically provides a standard 100-degree to 110-degree door opening range.
• Cup Diameter & Depth: Standard 35mm hinge cup diameter with a 12.5mm cup depth, requiring traditional 42mm or 45mm screw hole pattern spacing.
• Mounting Mechanism: Uses classic slide-on or snap-on baseplate connections depending on the generation of the baseplate.
• Adjustment Range: Features dual eccentric screw adjustments on the hinge arm for precise door gap alignment.

Common Use Cases

The Grass 830 is ideal for standard overhead kitchen cabinets, pantry doors, and bathroom vanities where a standard 100-degree swivel provides sufficient access without hitting adjacent walls or appliances.

Deep Dive: The Grass 850 Hinge

The Grass 850 series was introduced as an enhanced concealed hinge system, offering subtle modifications in arm throw, clearance, and mounting flexibility. While it shares the same 35mm cup bore diameter as the 830, its arm articulation curve is designed to accommodate different door overlay requirements and thick-door clearances.

Key Specifications & Features of the Grass 850

• Opening Angle: Offers broad opening profiles (often 110 degrees) designed to prevent binding on full-overlay or thicker cabinet doors.
• Clearance Profile: Modified hinge arm geometry provides greater clearance between the door edge and adjacent cabinet frames.
• Mounting Versatility: Pairs with specialized Grass baseplates designed for both face-frame and frameless cabinet box constructions.
• Durability: Reinforced pivot pin assembly designed for high-frequency residential and commercial applications.

Common Use Cases

The Grass 850 is frequently found on full-overlay kitchen doors, corner cabinets, or cabinet runs where tighter reveal gaps between adjacent doors are required.

Grass 830 vs. Grass 850: Side-by-Side Comparison

To help you determine which model is currently installed on your cabinetry, review the comparison matrix below:

Feature / Spec	Grass 830 Hinge	Grass 850 Hinge
Primary Design	Standard overlay concealed hinge	Full overlay / high-clearance concealed hinge
Hinge Cup Bore	35mm diameter	35mm diameter
Opening Angle	100° to 110°	110° (Enhanced clearance)
Arm Geometry	Straight / Medium crank profile	High-crank / Offset clearance profile
Door Thickness Range	16mm – 19mm (5/8" to 3/4")	16mm – 22mm (5/8" to 7/8")
Interchangeability	Requires matching pair on same door	Requires matching pair on same door
Best For	Traditional partial/standard overlay	Full overlay & thick profile doors

Critical Note: Never combine a Grass 830 and a Grass 850 on the same cabinet door. Mixing two different hinge arm geometries causes uneven tension, resulting in door binding, premature wear, and crooked cabinet alignment.

How to Choose the Right Replacement Hinge

Replacing obsolete or damaged hardware does not have to turn into a full kitchen remodel. Follow this simple 3-step evaluation to ensure you buy the exact replacement part:

1. Check the Model Stamp

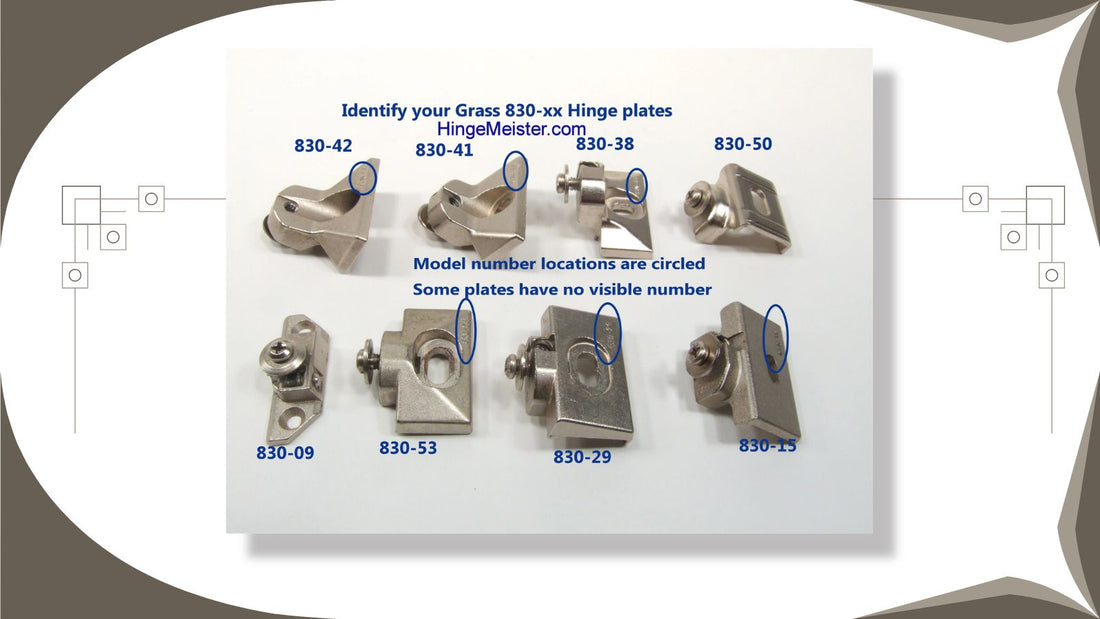

Unscrew one hinge from your cabinet door and inspect the metal arm and underside of the hinge cup. Look for stamped numbers such as 830, 830-01, 850, or 850-01.

2. Measure the Overlay and Hole Pattern

Measure the distance from the edge of the cabinet opening to the edge of the door when closed (the overlay). Next, measure the distance between the two screw holes on the hinge cup (center-to-center). Standard grass cabinet hinges typically use a 42mm, 45mm, or 48mm center-to-center screw pattern.

3. Order Authentic Direct-Fit Replacements

Because Grass has updated its product lines over the decades, finding original factory parts or exact direct-fit retrofits is crucial. You can browse and buy Grass 830 and Grass 850 cabinet hinges online to guarantee proper fitment, door overlay depth, and screw hole matching without needing to re-drill your cabinet doors.

Step-by-Step Replacement & Installation Guide

Once your new hinges arrive, swapping them out takes under 15 minutes per door:

1. Remove the Cabinet Door: Unbolt the mounting plate screws or activate the quick-release lever to detach the door safely from the cabinet frame.
2. Unscrew the Old Hinge Cup: Remove the two wood screws holding the hinge cup inside the door bore and pull the old hinge straight out.
3. Seat the New Hinge: Insert your new Grass replacement hinge into the 35mm cup hole. Ensure the hinge arm sits perfectly perpendicular (90 degrees) to the door edge.
4. Secure and Mount: Fasten the cup screws. Align the hinge arm with your existing baseplate (or install the new matching baseplate included in your kit).
5. Adjust Door Alignment: Use a Phillips screwdriver to adjust the alignment screws:

• Side Screw: Moves the door left or right to balance gaps between doors.
• Depth Screw: Moves the door inward or outward flush with the frame.
• Baseplate Screw: Adjusts vertical height up or down.

For additional hardware solutions, tools, and technical guides, visit the Hingemeister online store to support all your cabinet repair projects.

Frequently Asked Questions (FAQs)

Can I replace a Grass 830 hinge with a Grass 850 hinge?

It is not recommended to replace a single 830 hinge with an 850 hinge on the same door. Because their arm geometry and pivot curves differ, doing so will cause binding. However, you can replace both hinges on a door with Grass 850 hinges, provided the mounting plate and overlay match your cabinet frame dimensions.

Are Grass cabinet hinges soft-close?

Older vintage Grass 830 and 850 series hinges were non-soft-close self-closing spring hinges. However, modern replacement adapter dampers or upgraded soft-close retrofit hinges can be added to achieve smooth, silent closing action.

How do I know if I need a face-frame or frameless mounting plate?

Look at how your cabinets are built. Face-frame cabinets have a solid wood frame around the front of the box (common in North America). Frameless (European style) cabinets consist of bare box edges. Choose a mounting plate specifically engineered for your cabinet box style.

Where can I buy authentic replacement hinges for kitchen cabinets in the USA?

You can order genuine Grass hardware and direct-fit retrofit hinges online with fast US shipping through the Hingemeister Grass Collection.

Conclusion

Understanding the difference between the Grass 830 and Grass 850 hinges is the key to executing a flawless cabinet repair. By verifying your hinge model stamp, measuring your door overlay, and replacing hinges in matching sets, you ensure smooth door operation and protect your kitchen investment for years to come.

Need assistance identifying an obsolete hinge model? Contact the cabinet hardware specialists at Hingemeister today or explore our complete inventory of replacement hinges for kitchen cabinets to order your parts online.
