Grass 840 Hinges Guide: How to Choose the Right 840 12 Cabinet Hinge Replacement

For decades, custom cabinetry and high-end residential kitchens across the United States relied on premium European hardware to deliver seamless aesthetic appeal. Among the most popular legacy components from this era are Grass hinges, known for their durability and precise engineering. However, as kitchens age, even the most robust structural hardware undergoes wear and tear. Fatigue in internal tension springs or localized failure can leave homeowners with sagging doors, improper alignment, or loud slamming sounds.

If you are currently inspecting your kitchen or bathroom cabinetry and notice a stamp reading "840-12" or "830" on your hardware, you are dealing with a classic system of concealed cabinet hinges. Finding an exact match for these vintage pieces can be challenging, as manufacturing lines evolve and older models are phased out.

This comprehensive technical guide outlines the architecture of the vintage Grass cabinet hinge network, explains how to identify your existing setup, and demonstrates how to choose a modern, direct-fit upgrade to introduce soft close hinges to your home without the need to redrill your cabinet doors.

Understanding the Anatomy of Vintage Concealed Hinges

Concealed hinges, often referred to as hidden cabinet hinges, are designed to remain entirely invisible when the cabinet door is fully closed. This creates a clean, flush exterior profile that defines modern and transitional American kitchen spaces. The Grass 840 series, specifically the 840 12 variant, was a milestone in this product class.

When analyzing the engineering profile shown above, two distinct elements require evaluation to guarantee an accurate replacement: the hinge cup and the mounting plate.

1. The 35mm Hinge Cup

The circular component embedded directly into the back of the wooden cabinet door is the hinge cup. For the Grass 840 series, this cup features a standard industry diameter of 35mm. The distance between the two screw holes flanking the cup determines the structural footprint. This pattern ensures the structural integrity of the door remains stable during repetitive cycling.

2. Materials and Finishes

Historically, these components were manufactured using die-cast zinc alloys, frequently designated as the Grass 840-12 ZN model, or finished in a proprietary "Permagold" bronze aesthetic. Over years of exposure to kitchen humidity and cooking oils, these vintage metals can degrade, leading to mechanical binding.

When sourcing replacement hardware from specialized providers like HingeMeister, identifying whether your hinge uses a two-piece or a integrated single-piece architecture is the first step toward a successful restoration.

The Baseplate Matrix: Decoupling the 830-41 and 830-42 Series

A frequent point of confusion for homeowners and contractors alike is that a single Grass cabinet hinges configuration is actually an assembly of two matching components: the arm/cup mechanism and the baseplate (or mounting plate) attached to the cabinet face frame or sidewall.

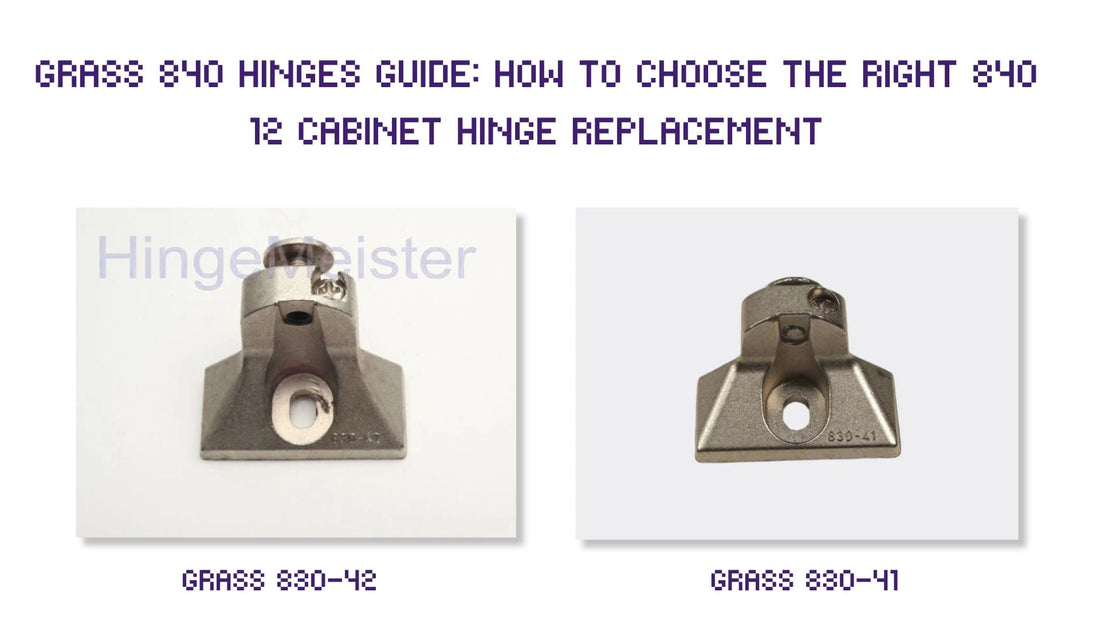

While the door cup may be stamped with 840-12, the plate hidden beneath the flat arm contains its own critical model numbers, most notably the 830-41 and 830-42 stampings. These mounting plates dictate the exact alignment and "overlay"—the distance by which the cabinet door overlaps the cabinet opening.

Original Baseplate Stamping	Corresponding Door Overlay	Common Application Layout
Grass 830-41	1/2-Inch Overlay	Traditional American face-frame kitchen cabinets.
Grass 830-42	1/4-Inch Overlay	Narrow reveal profiling or specialized structural offsets.

Using an incorrect baseplate during a hardware overhaul will alter your door overlays. This leads to issues where doors either bind against one another when opened simultaneously or leave large, uneven gaps that break the visual alignment of your cabinetry.

To explore the exact configurations available for your specific overlay needs, review the curated Grass 840 hinges with 830-41 & 830-42 base plates collection to cross-reference dimensions before ordering.

Why "Direct-Fit" Soft Close Upgrades Are Essential

When replacing obsolete hardware, you face a critical choice: install a generic modern hinge that requires filling old holes and drilling new ones, or source a precision-engineered "Direct-Fit" replacement component.

For standard residential properties across the USA, choosing a direct-fit component is highly efficient for several reasons:

• Preservation of Structural Integrity: Wood fibers around existing screw holes weaken if adjacent holes are drilled too close. A direct-fit solution utilizes the exact factory screw patterns originally machined into your doors.
• No Specialized Tooling Required: Standard retrofits require expensive Forstner bits, alignment jigs, and drilling presses. A direct-fit upgrade can be executed with a manual screwdriver.
• Integrated Hydraulic Dampening: Modern engineering allows for the introduction of soft close kitchen cabinet hinges into the vintage 840-12 footprint. The hydraulic dampening mechanism is contained entirely within the modern hinge cup, bringing silent, anti-slam functionality to vintage cabinetry.

If your cabinets currently utilize classic nickel hardware, opting for the standalone Grass 840-12 cabinet hinges in nickel maintains your original design aesthetic while restoring mechanical performance. If your primary objective is eliminating slamming doors, moving directly to the integrated Grass 840-12 ZN soft close replacement cabinet hinge delivers modern performance while preserving your original door mounting points.

Step-by-Step Replacement Sequence

Replacing your old hardware is a precise but manageable task. To prevent binding, scratching, or structural misalignment, follow this professional step-by-step installation sequence.

1.Deconstruct and Remove the Cabinet Door:

Requires a manual screwdriver.

Do not attempt to replace hinges while the door is hanging. Support the weight of the cabinet door and loosen the mounting screws connecting the hinge arm to the cabinet baseplate. Carefully lift the door clear of the frame and place it face-down on a soft, scratch-resistant work surface.

2.Extract the Faulty Legacy Hinge:

Inspect the structural bore hole.

Unscrew the two wood screws flanking the 35mm hinge cup. Gently pry the vintage hinge assembly out of its circular pocket. Clear away any accumulated wood dust, debris, or old lubricants from the bore hole to ensure a flush seating surface for the new hardware.

3.Seat the Direct-Fit Soft Close Replacement:

Check screw hole alignment.

Insert the new soft close replacement assembly directly into the vacant 35mm cup opening. Because this is a direct-fit component sourced via HingeMeister, the lateral mounting tabs will line up exactly with the existing holes in the wood. Hand-tighten the door screws securely; avoid power drills to prevent stripping the vintage wood threads.

4.Remount to the Cabinet Frame and Adjust:

Fine-tune door gaps.

Hang the door back onto the cabinet frame by securing the new adjustable mounting plate into the original frame anchor points. Once hung, utilize the built-in adjustment screws on the hinge arm to adjust the door's height, depth, and lateral positioning until your cabinet run shows perfectly square margins.

Important Pro-Tip: Never mix different brands or generations of hinges on a single cabinet door. Modern hydraulic mechanisms articulate at distinct speeds and angles compared to legacy mechanical springs. Mixing types will cause immediate mechanical binding, placing excessive stress on your door frame and potentially warping the wood over time. Always replace your door hardware in pairs.

Frequently Asked Questions

Can I replace my vintage Grass 840-12 hinge without drilling new screw holes?

Yes. By utilizing a verified direct-fit alternative engineered specifically for the legacy 840-12 footprint, both the 35mm circular door cup and the surrounding screw centers match your original cabinetry layout perfectly. This eliminates the need to patch, fill, or redrill your doors.

What is the difference between the 830-41 and 830-42 baseplates?

The difference lies entirely in the door overlay dimension. The 830-41 mounting plate provides a standard 1/2-inch overlay across your cabinet frame, whereas the 830-42 mounting plate is engineered for a tighter 1/4-inch overlay profile. Always check the stamped number on your existing plate to ensure a flush fit.

Why are my soft close hinges closing at different speeds?

High-quality modern replacements feature internal hydraulic dampers. If a door is exceptionally light or narrow, you can fine-tune the closure profile. Some configurations allow you to manually deactivate the soft-close dampening feature on one of the two hinges on the door, ensuring a smooth, steady closing motion without excessive lag.

Can I use a generic concealed hinge from a local home improvement store?

While generic hinges look similar online, their screw patterns, cup depths, and bore distances rarely line up with the legacy European tooling metrics utilized by Grass several decades ago. Buying generic often results in needing to drill new holes, which can weaken old cabinetry timber.

Conclusion

Upgrading vintage cabinet hardware does not require a costly, time-consuming kitchen remodel. Understanding the relationship between your original stamped components—such as the 840 12 cup design and its matching 830-41 or 830-42 mounting plates—allows you to confidently transition your home to smooth, quiet hardware. Sourcing specialized direct-fit upgrades ensures your face-frames remain pristine, your alignments remain clean, and your kitchen enjoys the lasting protection of modern soft-close technology.
