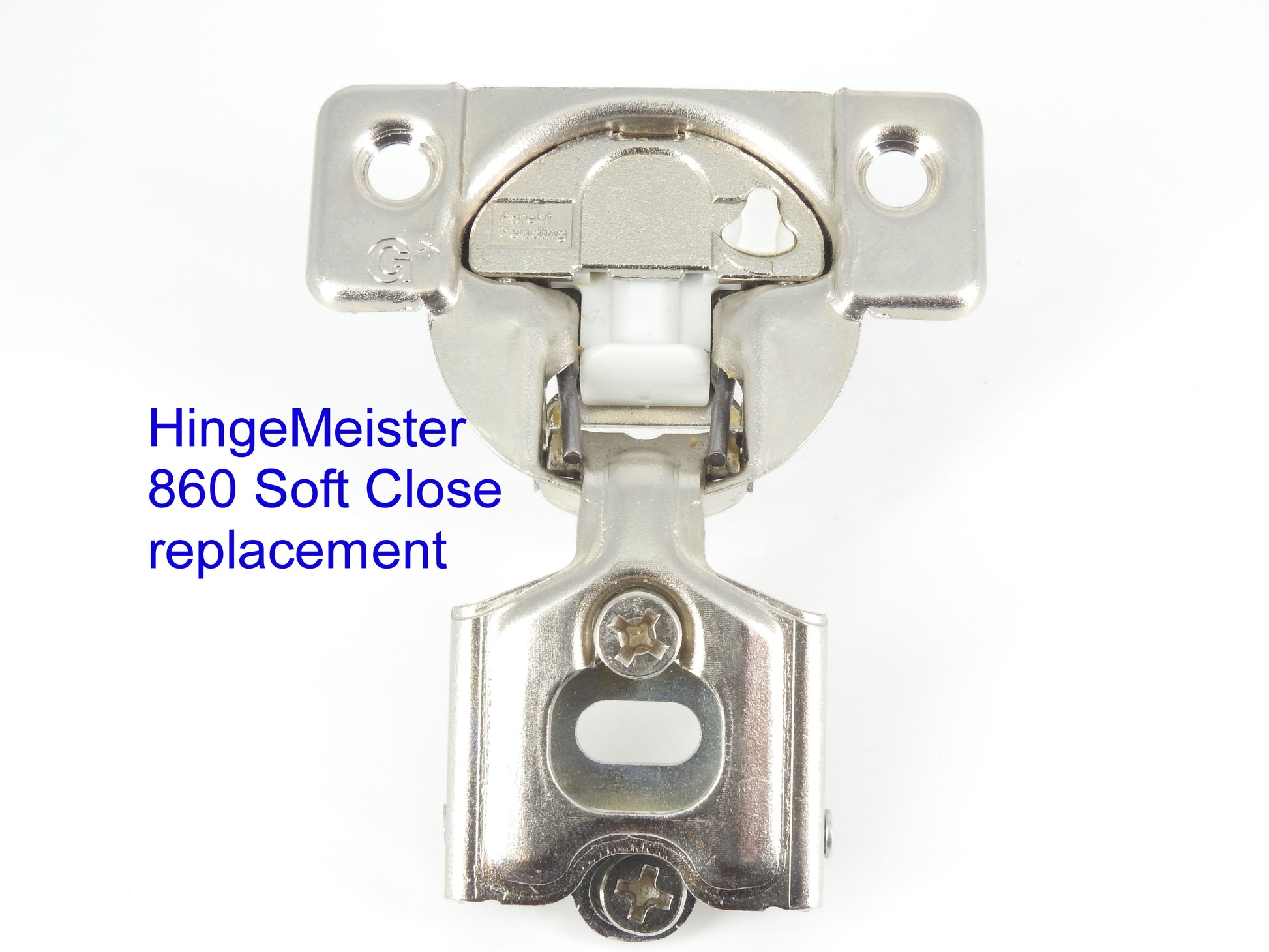

New Soft Close replacement hinge for the Grass 860 hinge. This is a Direct Fit replacement hinge. That means All the screw holes will line up with the existing screw holes in the door and cabinet! No drilling new screw holes. The large 35mm "cup" hole in the the door remains the same too. It's important to replace both hinges on the door to prevent binding or adjustment issues.
The old Grass 860-01 is shown for reference. You will receive the New Replacement hinge.
HOW TO ORDER:
- Find the number in the hinge "cup" either 860 01 or 860 02. (See Photos)
- Choose the cup number.

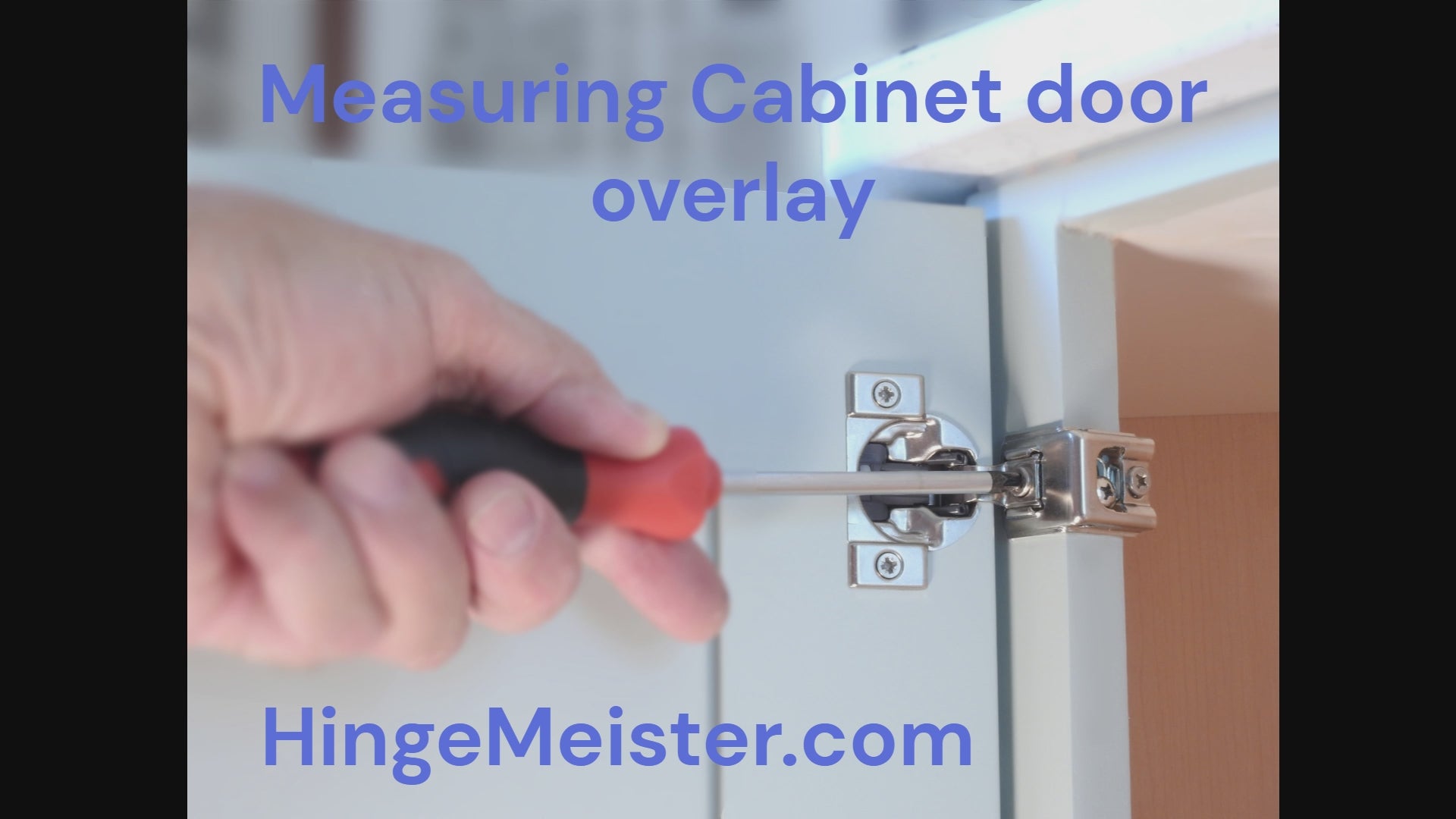

- Find the overlay measurement of the hinge using the instructions and photos below. Or see video to measure the overlay.
- Choose the hinge overlay.
- Enter the quantity. Each pack includes 2 hinges with screws.
- Add to cart.
What's included:
- 2 New replacement hinges for one standard door
- 4 screws for the door and 2 screws for the cabinet frame
Finding the door overlay for your hinge:

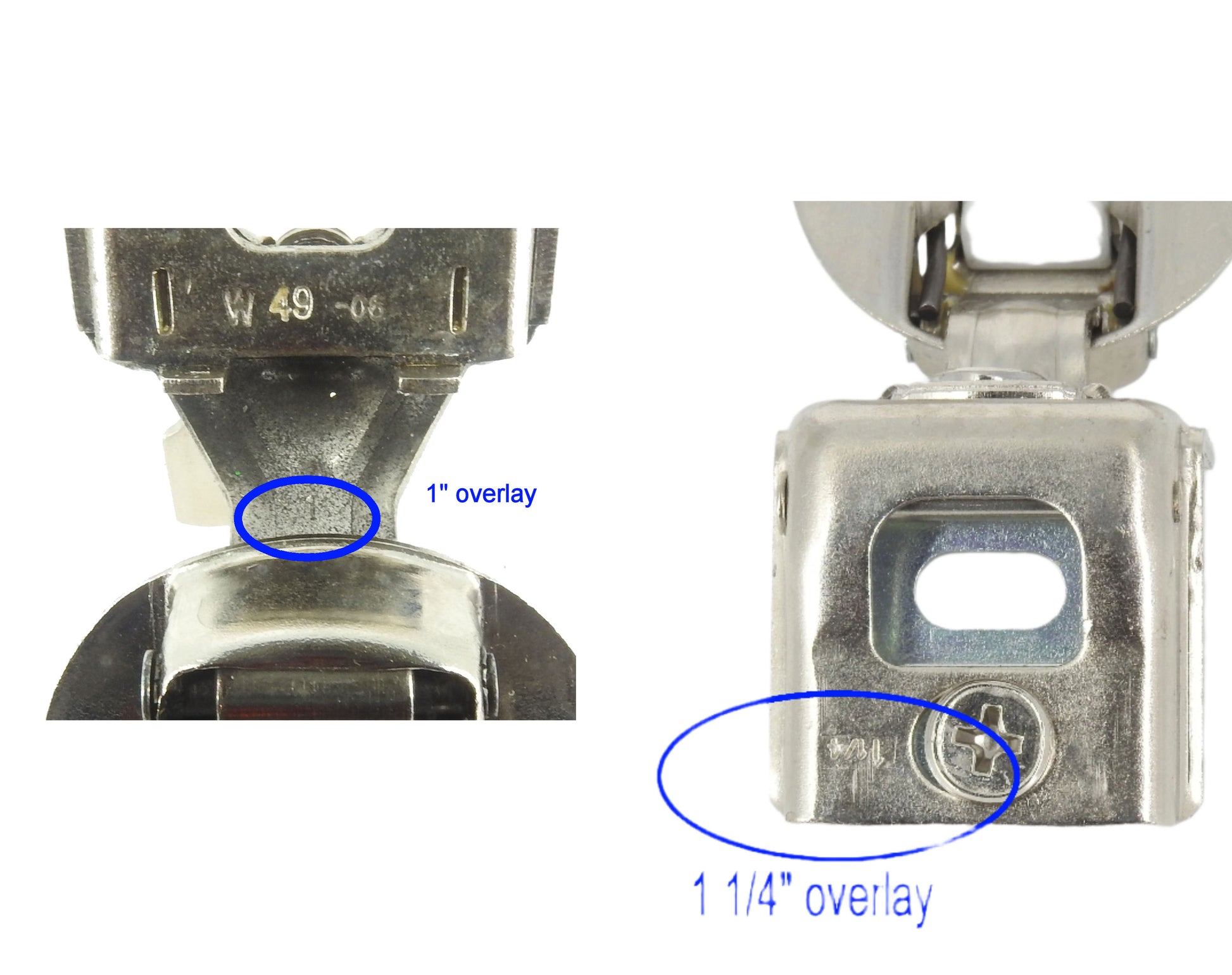

Depending on when your hinges were made, Grass stamped the overlay on the inside of the hinge arm - See photo 1.
Or more recently the overlay is stamped on the visible part of the mounting plate. - See photo 2.

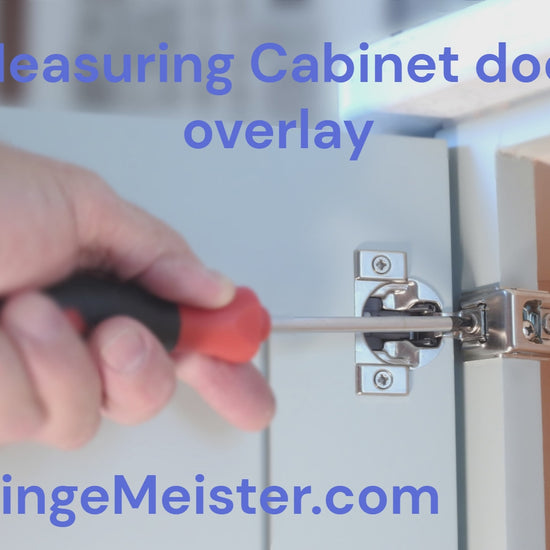

The older hinges may not be stamped at all. See the How to measure overlay video above. The video also shows the 45mm drilling and 42mm drilling.
